A two-leaf iron gate is only as secure as its weakest leaf, and on most Indian houses that is the leaf nobody locks. The lock itself gets all the attention, while the second leaf is held by a loose bolt, a bent stopper or nothing at all. Push that leaf and the whole gate swings open, lock still proudly closed.
Getting a double door iron gate lock right means treating the gate as a system. One leaf stays fixed, the other carries the lock, and both have to sit tight against each other and against the ground. Below is how that works in practice for the kind of MS and wrought iron gates seen outside homes, bungalows and small factories across North India.
Active leaf, fixed leaf and where the double door iron gate lock goes
On a two-leaf gate, one side is the fixed or passive leaf and the other is the active leaf that you open daily. The fixed leaf is secured first, usually at the bottom and sometimes at the top. The active leaf then closes against it, and the lock joins the two.

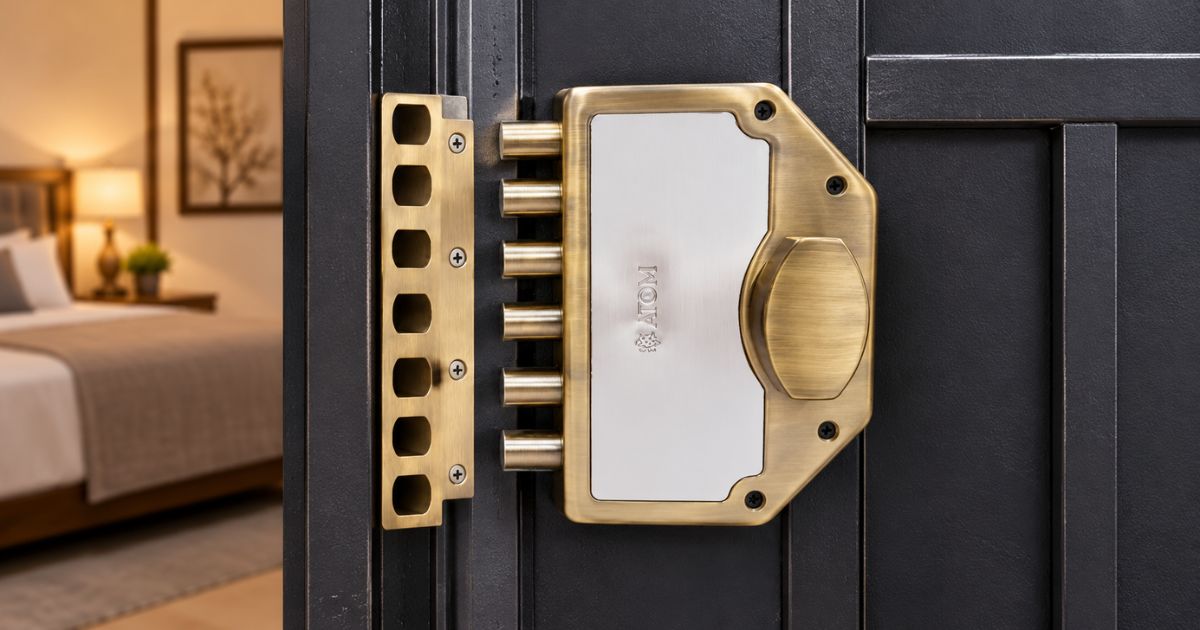

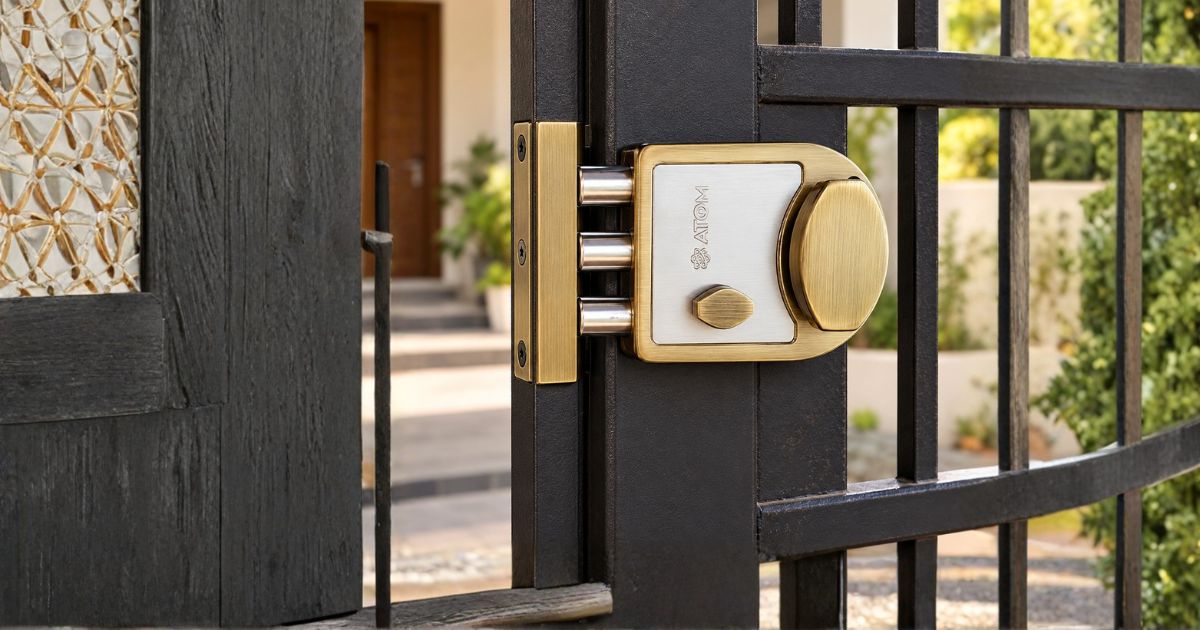

The lock is normally mounted on the active leaf at a comfortable hand height, with its bolt shooting into a keeper or box welded onto the fixed leaf. Many households pair this with an aldrop and padlock on the same meeting point, especially when the house is left empty, so there is a second barrier that does not depend on the lock mechanism alone.
The placement detail that is most often missed is the gap between the leaves. If the leaves meet with a wide gap, a bolt that is too short barely enters the keeper and a determined push can spring it free. Measure the gap with the gate closed and choose hardware whose bolt throw clears it comfortably. Where the gap is large, a welded cover strip on one leaf narrows it and also stops anyone slipping a tool between the leaves.
The centre stopper for gate leaves
A centre stopper is the small stop fixed into the ground or a concrete pad where the two leaves meet. Its job is to stop the leaves from swinging past each other and to give the fixed leaf something firm to rest against.
Without one, the active leaf can be pushed beyond closed, which strains the lock and the hinges each time someone shuts the gate with force. Over months the lock bolt stops lining up with its keeper, and you start lifting or shoving the gate to lock it. That is a sign the stopper is missing, worn or set in loose soil.
A good centre stopper is set in concrete, not just hammered into earth, and stands proud of the ground enough to catch the gate frame without tripping people walking through. On sloping driveways, check that both leaves meet the stopper at the same point, because a sagging leaf will land behind it.
Tower bolt for gate floor and top
The fixed leaf needs to be pinned down. A heavy tower bolt for gate floor fixing drops into a hole or socket in the ground, and this is what actually keeps the passive leaf from moving. For tall gates, a second bolt at the top that slides into the frame or a bracket stops the leaf from being pried outward at the upper corner.
Two practical points make a big difference here. First, the floor socket must be clean. A hole full of mud, leaves and gravel means the bolt drops only halfway, and most people never notice. A short length of pipe set into the concrete as a sleeve keeps the hole open. Second, the bolt should be long enough to reach the socket even when the gate has sagged slightly, which every iron gate does with time.
On large gates I would always use a sturdy bolt here rather than a light decorative one. The floor bolt carries far more load than its size suggests, since every push on the active leaf is passed through it.
Weather, rust and gate lock rust protection
Iron gates live outdoors, through dusty summers, heavy monsoon rain and foggy winter mornings. Lock bodies, aldrops and bolts on a gate face harsher conditions than anything on an inner door, so choose finishes and materials suited to that.
Some habits help a great deal with gate lock rust protection.
- Mount the lock so its keyhole does not face straight up into the rain, or fit a cover flap.
- Oil the bolt and keyway lightly after the monsoon and again before winter, wiping off the excess so dust does not stick.
- Repaint the welded keeper and centre stopper when you repaint the gate, since bare welds rust first.
- Clear the floor socket after every heavy rain.
A lock that has started to rust inside will often still turn, but stiffly. Do not force the key, because a snapped key inside a gate lock on a Sunday evening is a long wait for help. Spray lubricant into the keyway, work the key gently, and replace the lock if it does not free up.
